FEATURES
Product Parameter
Product type： | Full plastic Explosion-proof Terminal Boxes |
Certification： | CCC IECEX ATEX |
Application range (zones)： | 1G/Ga/zone 0；2G/Gb/zone 1；2D/Db/zone 20 |
Min.ambient temperature： | -55℃ |
Max.ambient temperature： | +55℃ |
Degree of protection： | IP66/IP65 |
Rated voltage/current： | max 1000V |
Rated current： | max 630A |
Material of enclosure： | GRP(anti-static glass fibre reinforced polyester SMC) |
Main technical data
| Certification： | China: CE 18.5062X Ex mark: Ex eb ⅡC T6/T5/T4 Gb Ex ia/ib ⅡC T6/T5/T4 Ga/Gb Ex tD A21 IP66 T80℃/T95℃/T130℃ IECEx: IECEx CML 17.0044X Ex mark: Ex eb ⅡC T6/T5/T4 Gb Ex ia/ib ⅡC T6/T5/T4 Ga/Gb Ex tb ⅢC T80℃/T95℃/T130℃ Db ATEX: CML 17ATEX3104X Ex mark: Ⅱ2G Ex eb ⅡC T6/T5/T4 Gb Ex ia/ib ⅡC T6/T5/T4 Ga/Gb Ⅱ2D Ex tb ⅢC T80℃/T95℃/T130℃ Db |
| Intended use: | Can be used in zone 0,zone 1 and zone 2 Can be used in zone 20，zone 21 and zone 22 |
| Ambient temperature: | -40℃≤Ta≤+40℃/+55℃ -55℃≤Ta≤+40℃/+55℃ |
| Degree of protection: | IP66/IP65 |
| Rated voltage/current： | max 1000V |
| Rated current： | max 630A |
| Material of enclosure: | GRP (anti-static glass fibre reinforced polyester SMC) |
Optional Ex components
CZ0220 Series Plastic stopping plugs, the reducer
CZ0220 Series Plastic cable glands, stopping plugs

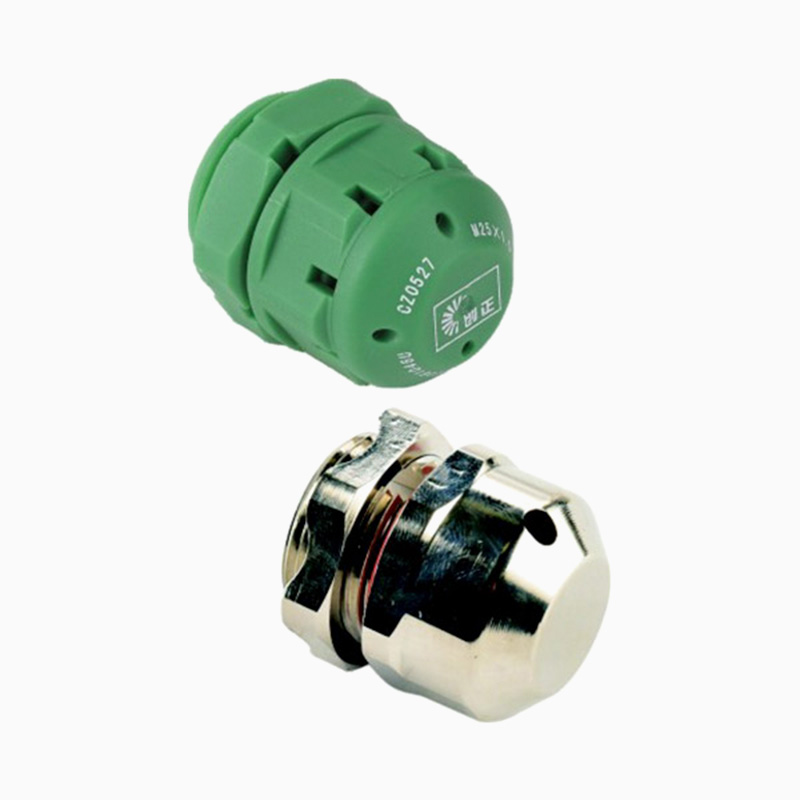

CZ0527、CZ1725/27 Increased safety breathing, drainage valve

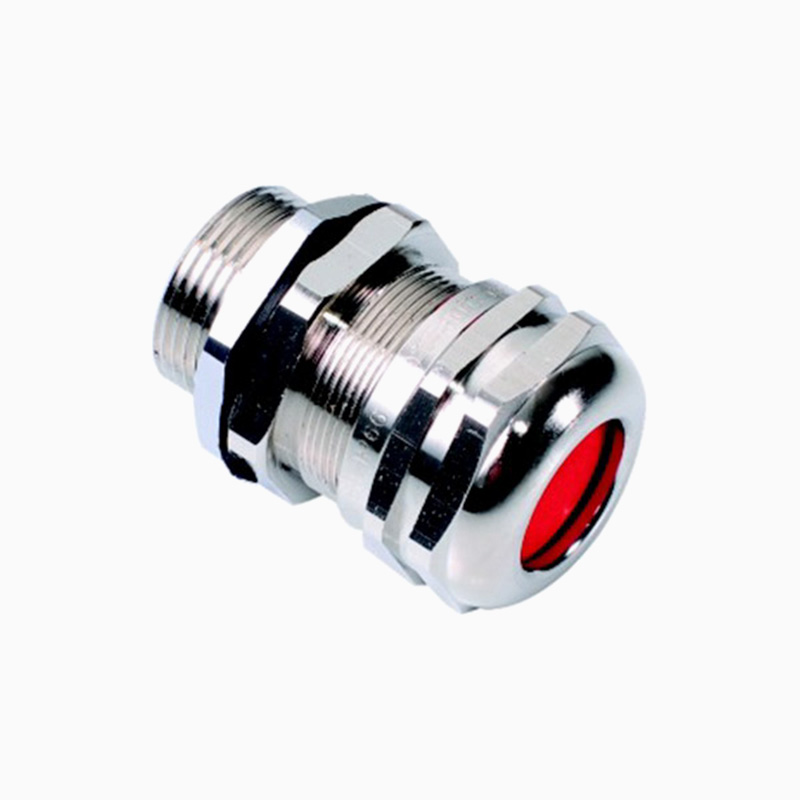

CZ1725/2A Metal cable glands

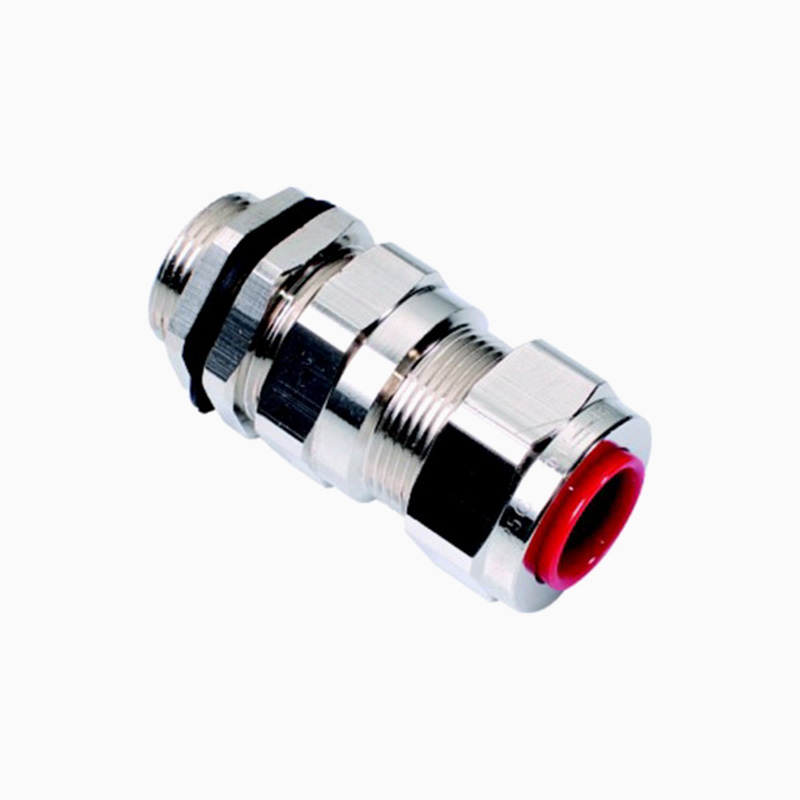

CZ1725/1A Metal cable glands
CZ1725/1B Metal cable glands
CZ1725/1C Metal cable glands

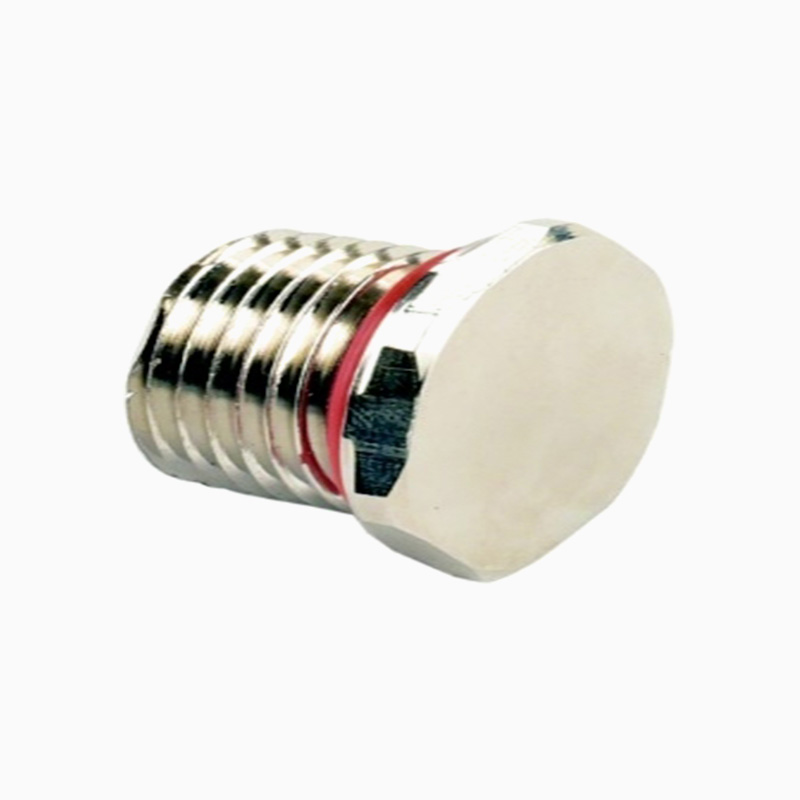

CZ1725/3A Metal stopping plug
CZ1725/4A The reducer
CZ0221 Metal cable glands
CZ0226 Increased safety cable glands
CZ0227 Increased safety metal cable glands
